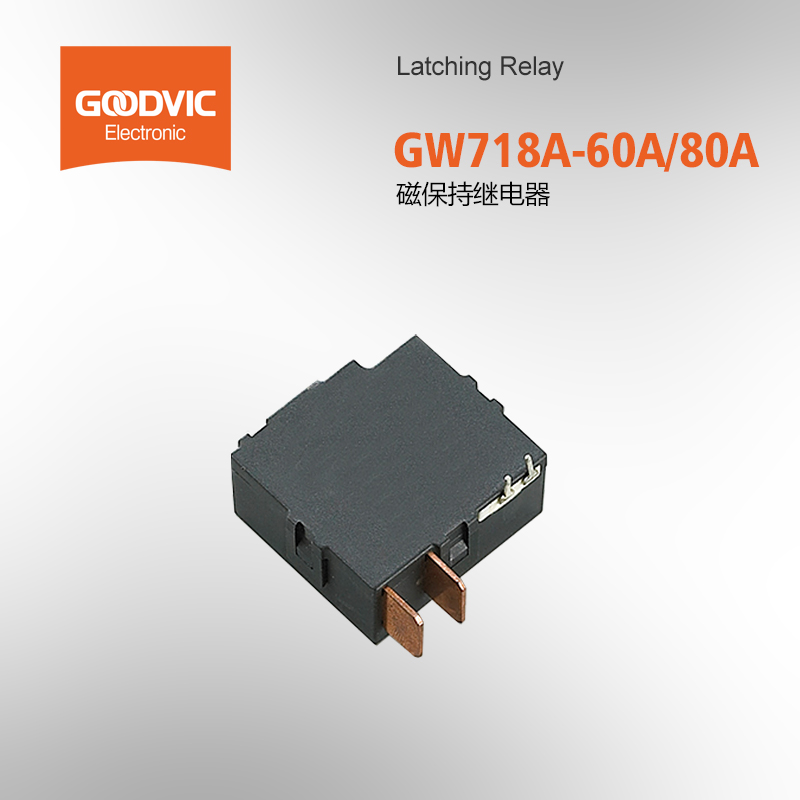

GW718A-60A/80A Latching Relay

Series: GW718A Series-Latching Relay

Print This Page

Bookmark

E-Mail to Us: admin@goodvicrelay.com

Call us: 0577-62258608 0577-57180097

Basic Specification

外形尺寸Dimensionsmm

38.5×33×17.2

触点形式 Contact Form

1A/1B

触点材料 Contact Material

银合金 (Silver Alloy)

最大切换电流 Max Switching Current(阻性Anti-load

80A

最大切换电压Max Switching Voltage

28VDC/250VAC

最大切换功率Max Switching Power

2200W/20000VA

重量(不带附件)Wight

45g

Coil Specification

线圈额定电压 Rated Coil Voltage

6VDC

9VDC

12VDC

24VDC

48VDC

线圈电阻

Coil Resistance

单线圈Single Coil±10%Ω

36

81

144

576

2304

双线圈Double Coil±10%Ω

18

40.5

72

288

1152

功率Power Consumption 单线圈1W;双线圈2W(特殊功耗特殊订货)

闭合电压 Pick-up Voltage

75%额定值(Rated Coil Voltage

断开电压 Drop-out Voltage

75%额定值(Rated Coil Voltage

过载电压 Max. Applicable Voltage

 120%额定值(Rated Coil Voltage

闭合时间Pick-up Time (At Rated Voltage)

20ms

断开时间Drop-out Time (At Rated Voltage)

20ms

回跳时间 Bounce Time

2ms

Characteristics

环境温度 Ambient Temp -40~+70

环境湿度 Ambient Humidity

年平均≤75%(Annually average)

抗振动 Anti-vibration

10~55Hz,0.5mm (Double Amplitude)

抗冲击 Anti-shock

98m/s2,11ms

相对湿度R.H.

45%~85%

接触电阻 Contact Resistance

2.0mΩ (1A/6VDC测试)

绝缘电阻Insulation Resistance 1000MΩ  (500VDC)

产品认证

UC3 /VDE

介质耐压   Dielectric Strength

触点间 Between Contacts

1750 VAC 50/60Hz (1 Minute)

触点与线圈间 Between Contact & Coil

4000 VAC 50/60Hz (1 Minute)

寿命Life

电气寿命Electrical Life

1104OPS

机械寿命 Mechanical Life

1106OPS

External Diagram



Wiring Diagram
